SAILOR 4300 L-BAND

SAILOR 4300 L-BAND

Overview

With an ‘always available’ onboard link to the Iridium® network, the lightweight and compact SAILOR 4300 L-band terminal provides high-bandwidth connectivity and three high-quality voice lines regardless of the weather conditions and worldwide location of your vessel. Supported by Cobham’s Global Service Network, it’s the perfect stand-alone terminal to upgrade vessel communications or a reliable back-up solution for existing VSAT systems. SAILOR 4300 L-band supports both data-heavy applications such as video-conferencing, multi-user internet services, IoT, telemedicine as well as regular usage such as email, electronic reports, and crew communications.

This product is currently not type-approved for sale, purchase, or use within the UAE. For more information, please contact our regional office.

Key Features

Multiple satellite tracking with no moving parts
Automatic thermal surveillance
GMDSS compliant via built-in GNSS
Easy configuration via web and built-in API
Single cable for easy installation

SPECIFICATIONS

Weight

  • ADU: 8 kg
  • BDU: 3.2 kg



Dimensions

380 x 367 mm



Temperature

  • Operational: -25°C to +55°C
  • Storage: -35°C to +85°C



Operating Humidity

  • ADU: 95% non-condensing at +40°C
  • BDU: 95% non-condensing at +40°C



Power Supply Voltage

10.8 V to 31.2 V DC



Output Power

120 W @ 10 – 32 V



Ingress Protection

  • ADU: IPX6
  • BDU: IP31



Antenna TNC

Antenna TNC



Standard IP

176 / 352 kbps



IN THE BOX

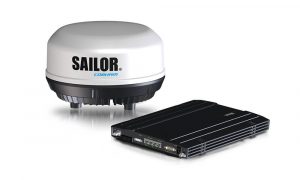

SAILOR 4352A Above Deck Unit

SAILOR 4352A Above Deck Unit



SAILOR 4338A Below Deck Unit

SAILOR 4338A Below Deck Unit



Installation Guide

Installation Guide



User Manual

User Manual



Coverage map

Coverage map

Product Materials

Language Type Last Updated Size
English Product Brochure 10 Feb 2026 452.83 KB
