MODEL NO

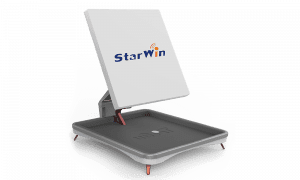

FL60P-E

ANTENNA TYPE

Slotted waveguide array antenna

EQUIVALENT TO PARABOLIC ANTENNA SIZE

0.6m

FREQUENCY RANGE

Tx: 13.75~14.50GHz | Rx: 10.95~12.75GHz

POLARIZATION

Linear

RECEIVING GAIN

≥35dBi

TRANSMITTING GAIN

≥36dBi

G/T

13dB/K

FIRST SIDELOBE

≥15dB

SATELLITE ACQUISITION

Automatically pointing to satellite, level error<0.2dB

AZIMUTH RANGE

Unlimited, fine tune ±80°

ELEVATION RANGE

7° ~ 90°

POLARISATION

±110°

POWER SUPPLY

AC 90-264V (DC 24V ±5% optional)

ABLE TO OPERATE OVER BOTH AC AND DC

power via integrated rechargeable battery

EXTERNAL BATTERY

187.2WH (Working time for external battery pack: Up to 2 hours)

MAX POWER CONSUMPTION

120W (with 6W BUC, searching process)

85W (access network)

TERMINAL DIMENSIONS

(not including cables and backpack)

(L×W×H): 680×650×240 mm

TOTAL TERMINAL WEIGHT

(not including cables and backpack)

18 kg (Max)

WIND (Operational)

14m/s (50km/h)

OPERATIONAL TEMPERATURE

-25°C to +50°C

INGRESS PROTECTION

IP-66

HUMIDITY

0 ~ 95%

SATELLITE MODEM

iDirect IQ 200 modem

TYPICAL BUC

6W

TYPICAL LNB

PLL LNB 30K for TDMA systems

PLL LNB 5K for SCPC systems

WIRELESS ROUTER SUPORTED PROTOCOLS

IEEE 802.11b/g/n at 2.4GHz

LAN PORT (RJ45)

Gigabit Ethernet

BLUETOOTH DEVICE

v.2.0

GNSS DEVICE SUPPORTS

GPS/GLONASS/BeiDou-2/Galileo
