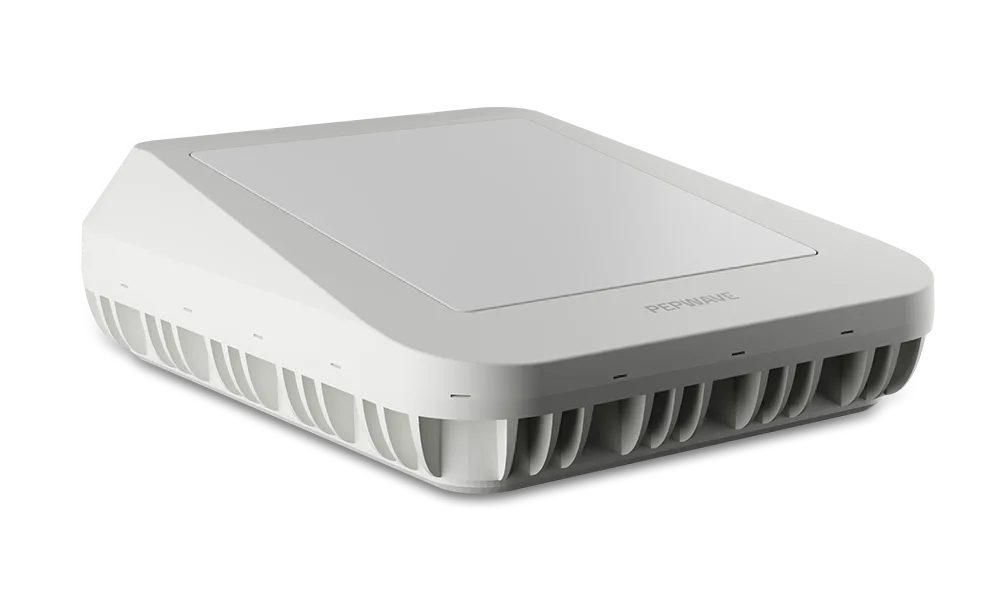

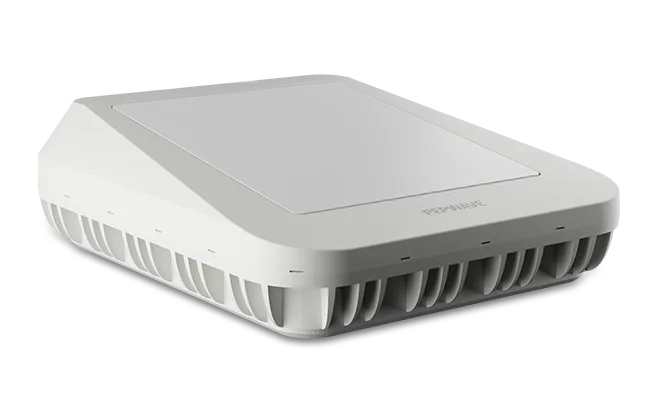

The Peplink Antenna MAX S is a fully integrated enclosure combining Starlink Mini, 5G/LTE, and routing into a single deployable unit. Built as a turnkey solution, it simplifies hybrid connectivity by eliminating external RF cabling and reducing installation complexity. With integrated antennas and Peplink’s networking capabilities, it enables reliable, high-performance connectivity with minimal setup.
Supported Types: Surface, Pole, Magnet, Vehicle roof racks or Custom mounts
Antenna MAX S
L-Mount Set
Power supply/splitter mounting set
Router fixation screws
2 pcs M25 cable glands
1 pc M25 hole plug
2 pcs RJ45 glands
2 pcs RJ45 caps
2 pcs Hole plug
1 pc DC Cable Connector
1 pc Starlink power cable (35.4′ / 900 mm)
1 pc Starlink Ethernet cable (35.4′ / 900 mm)
1 pc Double-sided 3M adhesive pad
1 pc Ethernet cable (7.87″ / 200 mm)
1 pc DC cable (3.93″ / 100 mm)
Product Dimensions:
Packaged Dimensions: 585 × 456 × 185 mm / 23.03″ × 17.95″ × 7.28″
Enclosure Material:
Antenna Elements: 4 elements
Peak Gain & Frequencies:
VSWR: < 2.5 over 95% of the band
Feed Power Handling: 10W
Input Impedance: 50Ω
Polarisation: Linear
Connectors: Right angle SMA male
Antenna Elements: 2 elements
Peak Gain & Frequencies:
VSWR: < 3.0
Feed Power Handling: 10W
Input Impedance: 50Ω
Polarisation: Linear
Connectors: Right angle RP-SMA male
Frequency Range: 1575–1602 MHz
Peak Gain:
VSWR: < 2.0
Gain (LNA): 27 ±3 dB
Noise Figure: 2.5 dB
Operating Voltage: 3.3V
Power Consumption: 10 ±3.0 mA
Connectors: Right angle SMA male
IP Rating: IP67
Operating Temperature: -40° – 176°F / -40° – 80°C
Storage Temperature: -40° – 176°F / -40° – 80°C
Compliance: RoHS, REACH, WEEE
Enclosure Flammability: UL 94 V-0 (1.47 mm)
UV Resistance: UL 746C (Long-term UV exposure)
Salt Spray: ASTM B117
Product Code: ANT-MAX-S
Description: Enclosure with integrated 4x 5G/LTE, 2x Wi-Fi, GPS antennas for Peplink routers and Starlink Mini bundle solution
ACW-651: 1” 14 TP female to mobility thread for deck mount
ACW-653A: 1 1/4” 11 TPI male adapter for deck mount
