Overview

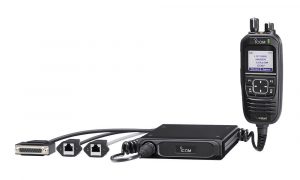

Offering real-time communications at the push of a button anywhere in the world, ICOM IC-SAT100M is a dedicated satellite push-to-talk (PTT) radio that operates on the pole-to-pole Iridium® network. Leveraging LEO satellites, its state-of-the-art PTT button instantly connects users with all the radios in the same talkgroup. The ICOM IC-SAT100M can easily interconnect with an IP phone, WLAN, LTE, IDAS digital, and analog transceivers.

This product is currently not type-approved for sale, purchase, or use within the UAE. For more information, please contact our regional office.

Key Features

Real-time PTT radio talkgroup communications
Pole-to-pole network coverage over the Iridium® network
Multi-functional speaker-microphone
Integrated GPS receiver
IP67 waterproofing and dust protection

SPECIFICATIONS

Weight

  • Antenna: 500 g
  • Main Unit: 950 g
  • Main Unit + Microphone: 1200 g

Dimensions

  • Antenna: 76.8 x 200 x 76.8 mm
  • Main Unit: 125 x 29 x 156.5 mm
  • Microphone: 59.5 x 134.6 x 30.1 mm

Operational temperature (°C)

-30°C to +60°C

Power Supply Voltage

13.2 V / 26.4 V DC

Audio Output Power

  • Internal Speaker: 1500 mW typical (8 Ω load)
  • External Speaker: 4 W typical (4 Ω load)

Frequency

1616 MHz to 1626.5 MHz

Ingress Protection

  • Antenna: IP67
  • Main Unit: IP54
  • Microphone: IP55

Antenna SMA

Integrated GPS Receiver

Built-in Bluetooth Capability

Multiple Language Display

AES 256-bit Encryption

Short Data Message

Talkgroup

Up to 15

IN THE BOX

  • Multi-functional speaker-microphone
  • OPC-2435 DC Power Cable
  • OPC-2102 LAN Cable (20m)
  • Mobile Bracket

Coverage map

Coverage Map

Product Materials

Language Type Last Updated Size
English Product Brochure 13 Aug 2026 344.90 KB
  • Type Product Brochure
  • Language English
  • Last Updated 13 Aug 2026
  • Size 344.90 KB
