ICOM SAT-100 PTT

Overview

The IC-SAT100 provides the loud, crisp Iridium® Push-to-Talk service in a highly durable handheld radio with the user attributes of a terrestrial LMR.

Thanks to its simple & easy-to-use user interface with robust body, it can be used for group calls (up to 15 groups) and is largely independent of terrestrial infrastructure. Users can immediately start talking to all the radios in the same talk-group by just pushing the transmit (PTT) button.

IC-SAT100 offers secure conversations with AES 256-bit encryption.

This product is currently not type-approved for sale, purchase, or use within the UAE. For more information, please contact our regional office.

Key Features

Total coverage including the poles
Independent of terrestrial infrastructure
Uses the Iridium® PTT service and interoperates with VHF/UHF, HF, LTE, IP-based phones
Transmit an emergency call to preprogrammed users with holding down the key
Offers secure conversations with AES 256-bit encryption

Markets - Maritime

Markets - Land

SPECIFICATIONS

Weight

  • Antenna: 500 g
  • Main Unit: 950 g
  • Main Unit + Microphone: 1200 g

Dimensions

  • Antenna: 76.8 x 200 x 76.8 mm
  • Main Unit: 125 x 29 x 156.5 mm
  • Microphone: 59.5 x 134.6 x 30.1 mm

Operational temperature (°C)

-30°C to +60°C

Power Supply Voltage

13.2 V / 26.4 V DC

Audio Output Power

  • Internal Speaker: 1500 mW typical (8 Ω load)
  • External Speaker: 4 W typical (4 Ω load)

Frequency

1616 MHz to 1626.5 MHz

Ingress Protection

  • Antenna: IP67
  • Main Unit: IP54
  • Microphone: IP55

Antenna SMA

Antenna SMA

Integrated GPS Receiver

Integrated GPS Receiver

Built-in Bluetooth Capability

Built-in Bluetooth Capability

Multiple Language Display

Multiple Language Display

AES 256-bit Encryption

AES 256-bit Encryption

Short Data Message

Short Data Message

Talkgroup

Up to 15

IN THE BOX

  • Multi-functional speaker-microphone
  • OPC-2435 DC Power Cable
  • OPC-2102 LAN Cable (20m)
  • Mobile Bracket

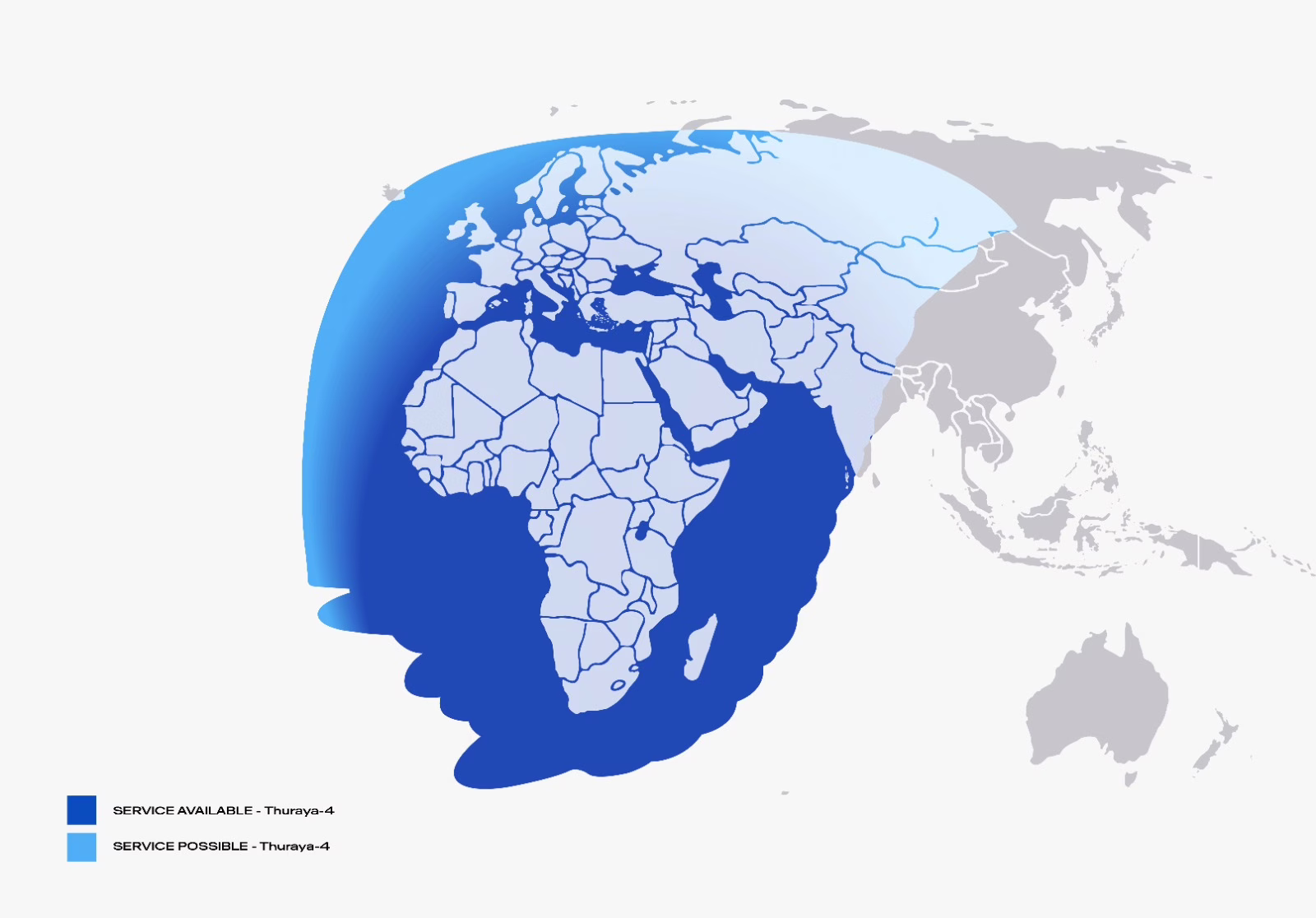

Coverage map

Coverage Map

Product Materials

LanguageTypeLast UpdatedSize
EnglishPDF10 Feb 2026418.66 KB
  • Type PDF
  • Language English
  • Last Updated 10 Feb 2026
  • Size 418.66 KB
