INTELLIAN C700 GMDSS SYSTEM

Overview

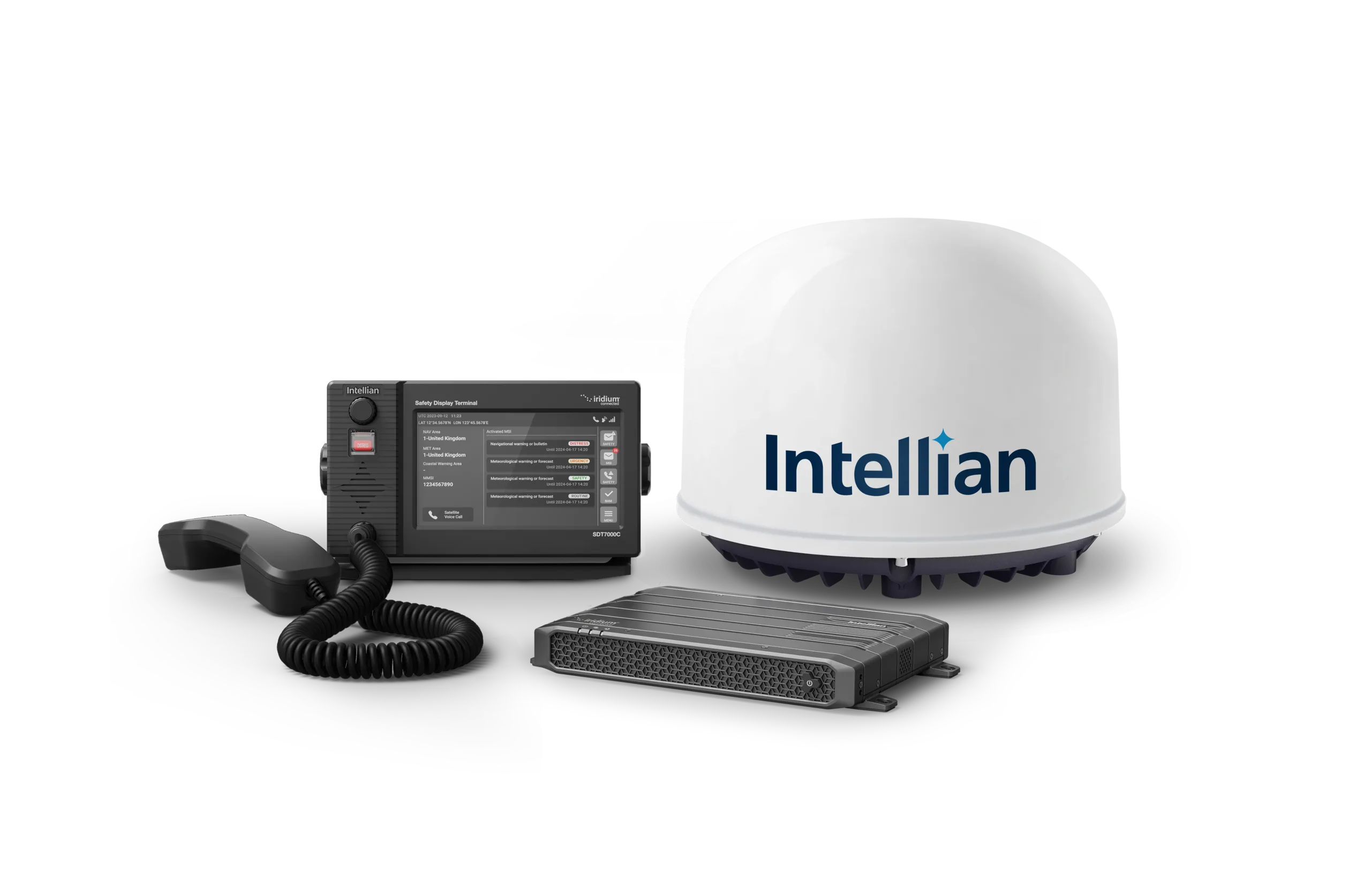

The Intellian C700 GMDSS System is the only Iridium Certus C700 GMDSS terminal available today. It delivers a fully compliant, next-generation GMDSS solution supported by 100% global, pole-to-pole connectivity. The system meets IMO and SOLAS requirements and supports all three mandatory Iridium GMDSS services: Distress Alert, Safety Voice, and Maritime Safety Information (MSI). Beyond core safety tasks, the C700 also provides LRIT and SSAS. Operating over Iridium® Certus 700, Intellian C700M is a perfect L-band companion for Flat Panels and VSAT terminals. The integrated 7″ Safety Display Terminal (SDT), intuitive interface, and strong bridge integration capabilities make the C700 a high-performance, installation-ready choice for any SOLAS-regulated vessel.

Key Features

Full GMDSS Compliance
Truly Global Coverage
Robust L-band companion
7" Safety Display Terminal
User-Centric Design
Easy Installation

Markets - Maritime

Shipping
Fishing
Offshore
Leisure Boats
Superyachts

SPECIFICATIONS

C700 GMDSS

Certifications: MED (Wheelmark), MER, Maritime CE, FCC, ISED, RED, RoHS2, Iridium®, KC

Regulatory: SOLAS type-approved

Vibration (operational): IEC 60945

Vibration, shock: Half sine 20 g / 11 ms

ADU (ABOVE DECK UNIT)

Dimensions: 370 × 270 mm / 14.5″ × 11.0″

Weight: 7.3 kg / 16 lb

Tx Frequency: 1616 MHz – 1626.0 MHz

Rx Frequency: 1616 MHz – 1626.5 MHz

Antenna Gain: L2 Class

Connectors: TNC female (ADU) – TNC female (BDU)

BDU (BELOW DECK UNIT)

Dimensions: 280 × 190 × 41 mm / 11″ × 7.2″ × 1.45″

Weight: 1.2 kg (standalone) / 2.6 lb

Power (max): 110 W

DC Input: 10.8 – 30 VDC

SDT (SAFETY DISPLAY TERMINAL)

Display: 7″ IPS TFT Full Touch Screen (1024 × 600)

Dimensions (with bracket): 254 × 147 × 94 mm / 10″ × 5.8″ × 3.7″

Dimensions (without bracket): 239 × 135 × 85 mm / 9.4″ × 5.3″ × 3.3″

Weight: 1.0 kg / 2.2 lb

DC Input: 24 VDC

IP Rating: IP32

Temperature: -15°C to +55°C

Interfaces: Ethernet × 2, RS-422 × 2, CAN, RS-232

HANDSET & CRADLE

Weight (handset + wire): 0.4 kg / 0.88 lb

Dimensions: 82 × 236 × 76 mm / 3.2″ × 9.3″ × 2.99″

Temperature: -15°C to +55°C

IP Rating: IP32

ACCESSORIES

MED-approved Power Supply Unit

Junction Box

SSAS buttons

GMDSS Alarm Button / Alarm Unit

Universal flush-mount retrofit plates

Printer / keyboard options

Coverage map

Coverage Map

Product Materials

Language Type Last Updated Size
English Product Brochure 20 Aug 2026 361.27 KB
  • Type Product Brochure
  • Language English
  • Last Updated 20 Aug 2026
  • Size 361.27 KB
