Thales WaveLink

Overview

Thales WaveLINK is a next-generation GMDSS solution that integrates advanced onboard safety features with versatile applications to support industry-specific maritime operations.

Powered by Iridium Certus, WaveLINK delivers Maritime Safety Information (MSI), Long-Range Identification and Tracking (LRIT), and Ship Security Alert System (SSAS) capabilities. It features an OpenBridge front-end interface for seamless integration and intuitive operation.

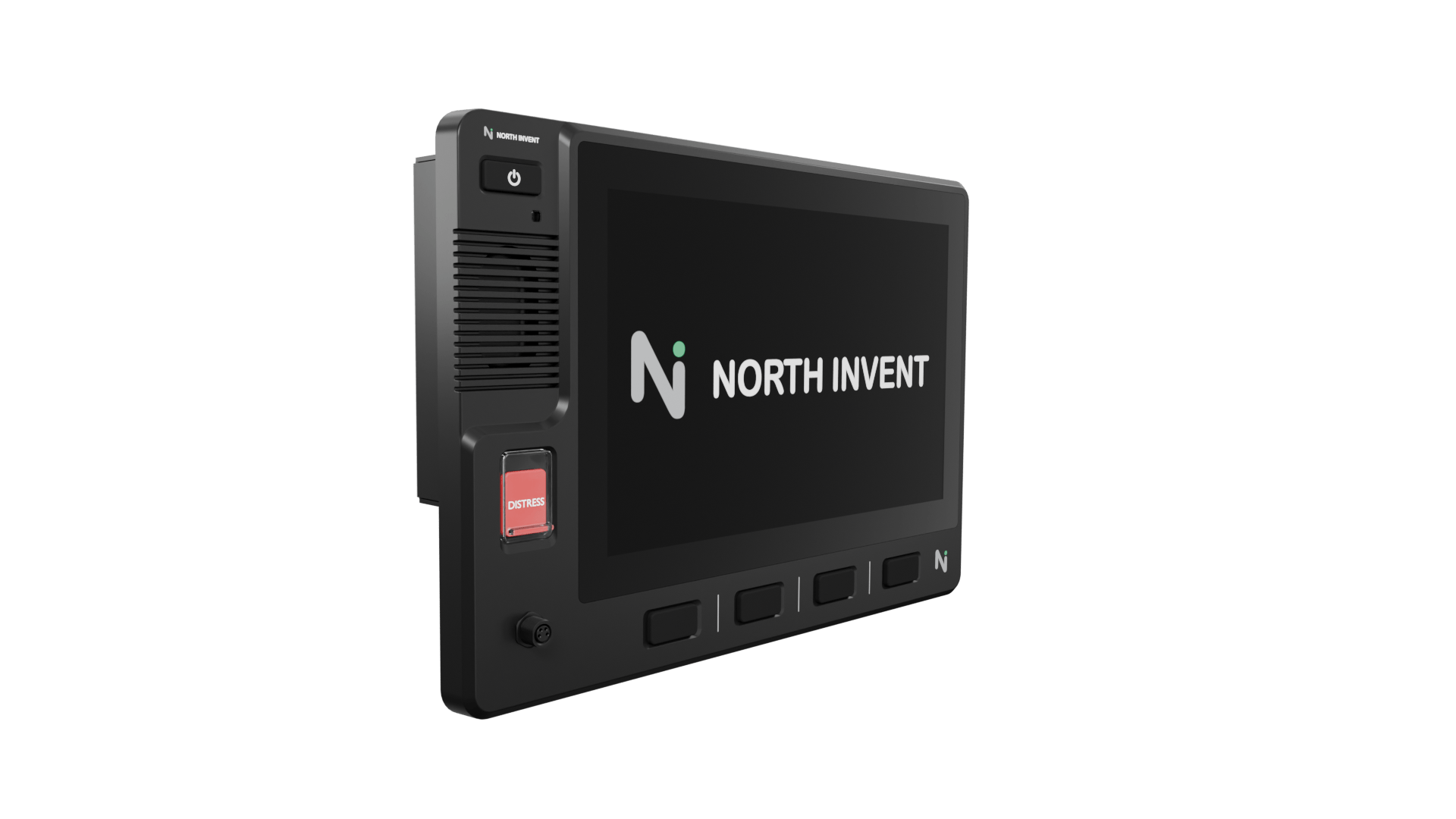

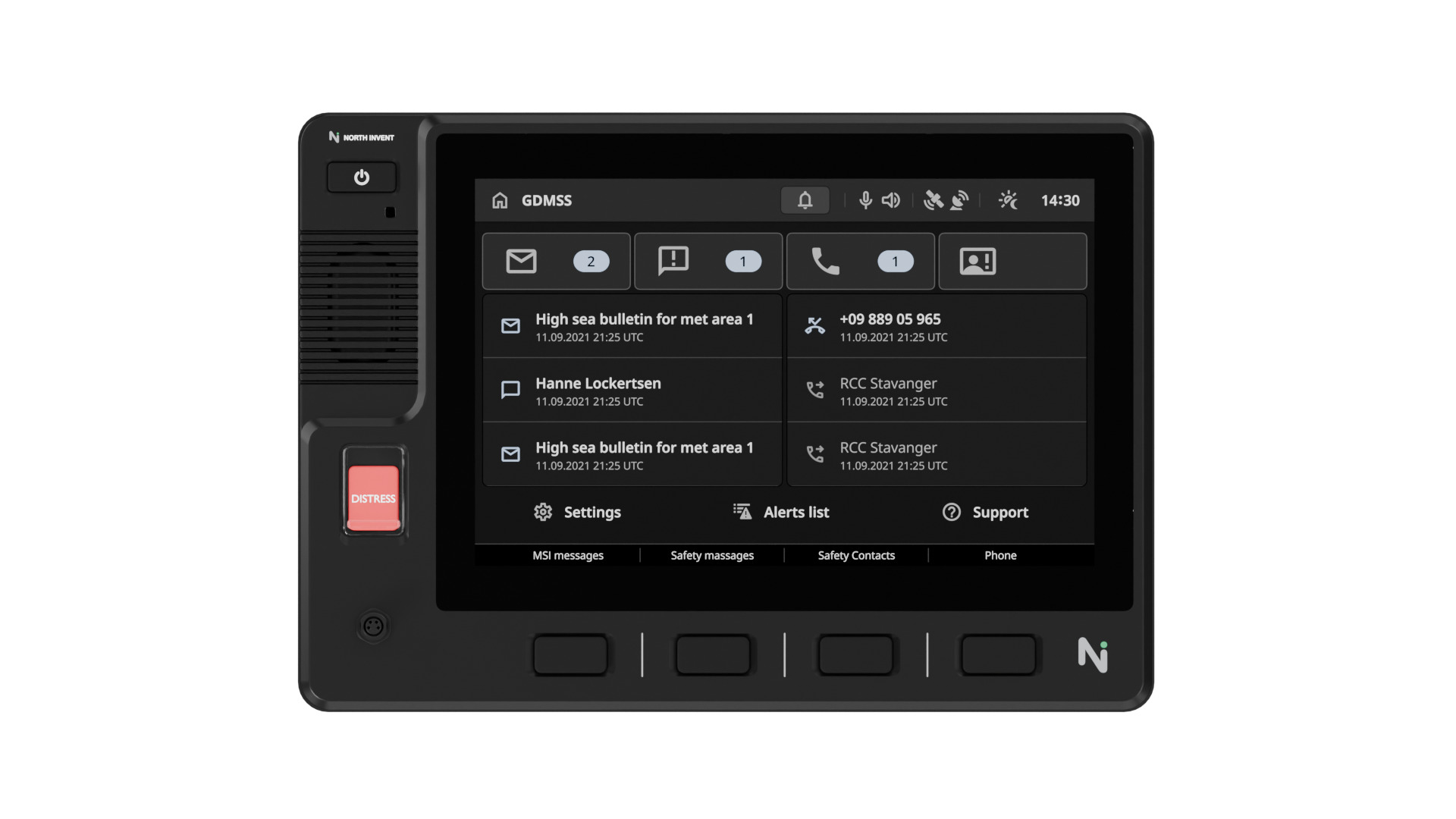

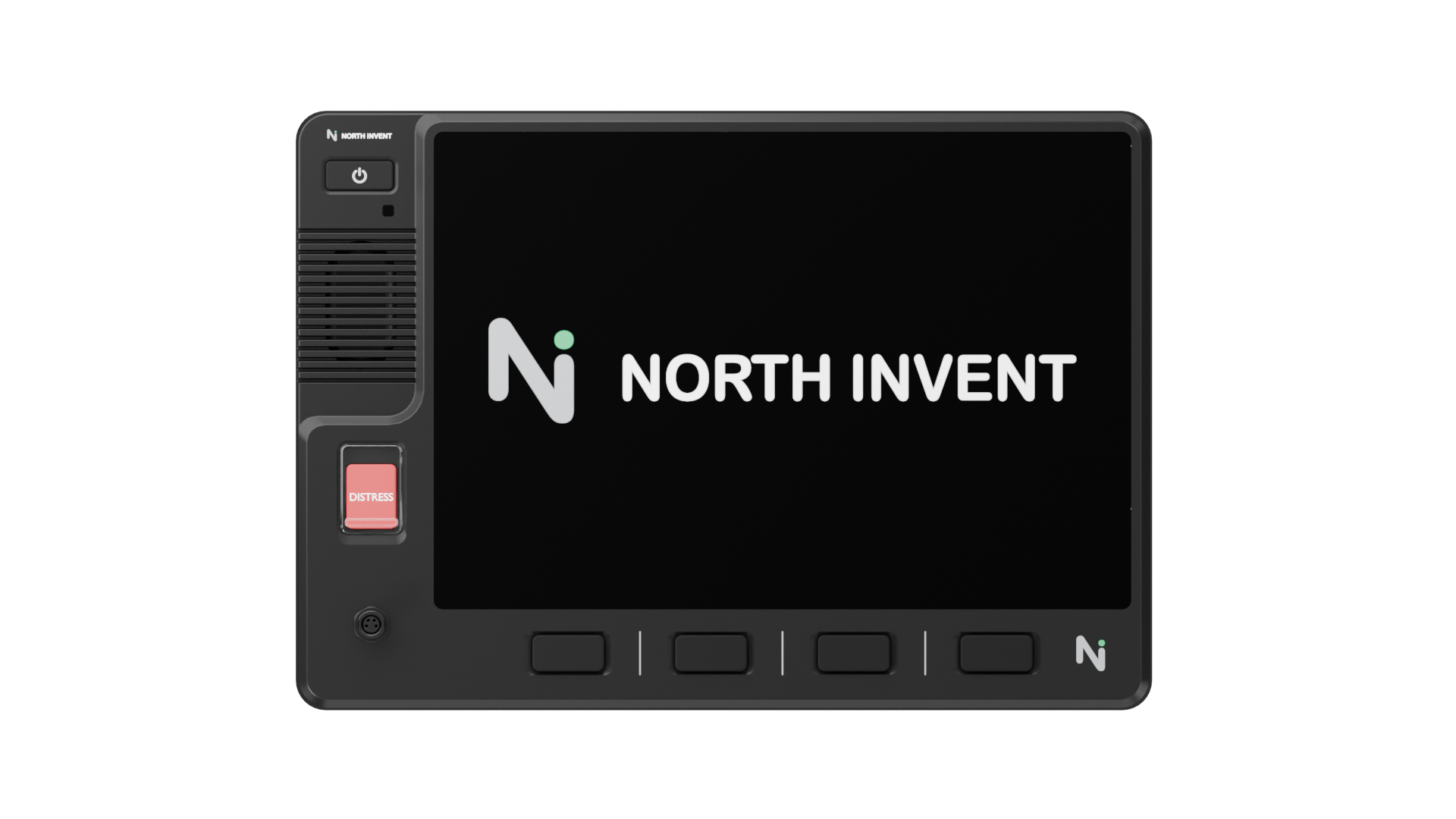

Designed for scalability, the 10.1” multi-touch panel computer connects with Thales VesseLINK and complements existing Certus terminals. It also supports third-party applications such as fish catch reporting, search and rescue coordination, and other mission-critical maritime functions.

Key Features

GMDSS: Distress Voice, Alert & MSI
SSAS: Ship Security Alert System
LRIT: Long-Range Identification Tracking
OPEN-BRIDGE interface with an option to integrate third-party applications
INTEGRATION: Compatible with external apps
USER-FRIENDLY: colour LCD touch display, programmable soft-keys

Markets - Maritime

Shipping
Fishing
Offshore
Leisure Boats
Superyachts

Markets - Land

Government
Humanitarian
Energy
Enterprise
Media

SPECIFICATIONS

PHYSICAL CHARACTERISTICS

Active Display Size: 10.1” (216.96 x 135.60 mm)

Dimensions: 300 x 210 x 45 mm

Weight: 2.5 kg

Processor: CPU Intel® Atom x6425E @ 2.0 GHz (2.7 GHz)

Storage: 64 GB eMMC 5.1 onboard flash

DISPLAY CAPABILITIES

Resolution: 1280 x 800

Light Intensity: 900 cd/m2

Viewing Angle: +88°

Contrast Ratio: 800:1

Response Time: 13 ms

POWER

Supply: 10 – 32 VDC

Consumption: ~ 35 W

ENVIRONMENTAL CONDITIONS

Temperature:

  • Operational: -20°C to +55°C
  • Storage: -20°C to +55°C

Mounting & Sealing: IP31

Matching Standards:

  • IEC 60945, IEC 60529 (IP)
  • IACS E10
  • EMC Directive–2014/30/EU
  • RoHS
  • REACH

INTERFACES

Programmable Soft Keys

Hard Buttons

2 x 10/100/1000 Ethernet RJ45 with TPM

2.0 1 x DisplayPort (DP++) output

1x USB 3.1 Gen2 Type C

2 x USB 3.1 Gen 2 Type A

1 x RS232 (9-pin DSUB)

1 x RS422 (9-pin DSUB)

GPIO Distress Button

SSAS Buttons

BAM Rele

BAMS Integration Display / Printer (RS-422) Extra Output RS-422 (e.g. ECDIS)

GPS NMEA Output (RS-422)

Coverage map

Coverage Map

Product Materials

Language Type Last Updated Size
English Product Brochure 09 Feb 2026 420.44 KB
  • Type Product Brochure
  • Language English
  • Last Updated 09 Feb 2026
  • Size 420.44 KB
