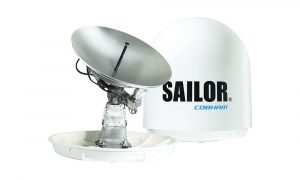

SAILOR 100GX enables high-speed broadband connectivity and operational continuity with its seamless and cost-effective switch between antennas. Designed to withstand high shock and vibration conditions, its advanced tracking receiver quickly connects with the satellite at start-up and in case of poor signal strength. Powered by the high-end Ka-band Inmarsat network, SAILOR 100GX is an advanced antenna system that features Automatic Azimuth Calibration, Automatic Cable Calibration, and Global Xpress One Touch Commissioning.
Reflector Size:
103 cm
Power Options:
Vibration:
Shock:
MIL-STD-810F 516.5 (Proc. II)
Temperature:
Frequency:
ACU to ADU Antenna Cable:
Single 50 Ω coax
Dimensions:
Weight:
IP Rating:
Elevation Range:
-25° to +125° (ADU)
Humidity:
Transmit Gain:
47.5 dBi typ. @ 29.5 GHz (excl. radome)
Receive Gain:
44.0 dBi typ. @ 19.7 GHz (excl. radome)
EIRP:
≥53.5 dBW (incl. radome) MAX. 36.0 dBW/40KHz
LNB: GX Ka single band LNB
3-axis Stabilised Tracking Antenna
Integrated GNSS (GPS, GLONASS, Beidou)
1 x N-Connector for antenna RF Cable (50 Ω)
2 x F-Connectors (75 Ω)
1 x Ethernet (modem)
1 x RS-422
1 x RS-232
1 x NMEA 0183 (RS-422 or RS-232)
3 x Ethernet (2x user & 1x service, set-up)
1 x AC Power Input
1 x Grounding Bolt
1 x LAN Connector
2 x F-Connectors (75 Ω)
1 x RS-422
2 x RS-232 (modem control & modem console)
1 x Universal AC Input
1 x Grounding Bolt
Built-in Fan and Heater
